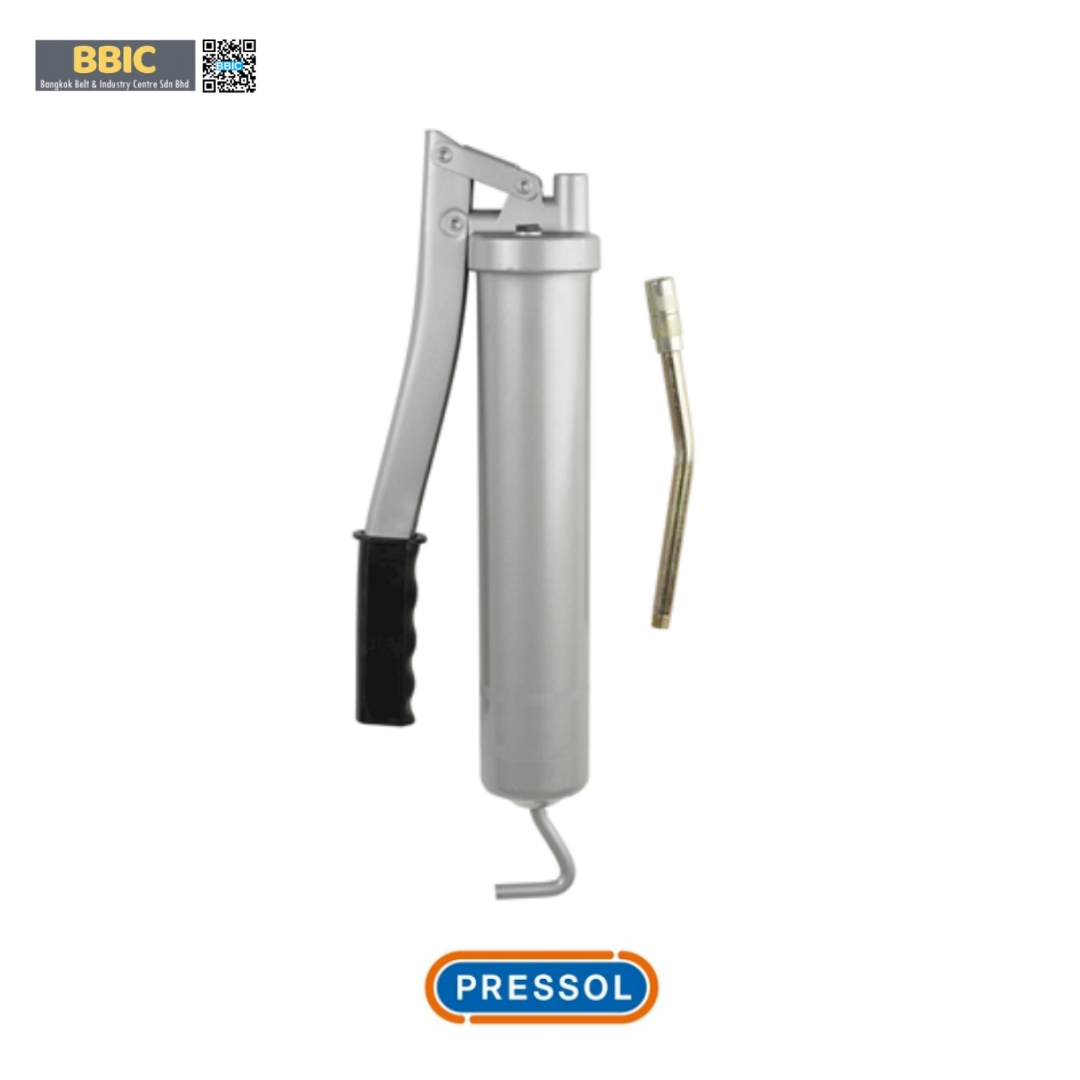

Standard grease gun-HHFP
G 1/8″ -GBDR-MU

Item number: 12 632 125
EAN: 4103810127328
Discount group: A

Technical data
Grease gun connection, pressure-side: G 1/8”
Capacity (cm³): 500
Refilling options: 400 g grease cartridge, DIN 1284, or bulk grease using a spatula
Diameter of grease piston (mm): 8
Grease pump piston actuation: manually lever operated
Delivery rate/stroke (cm³): 1.2 at a grease density of 0.92 kg/dm³, tested with grease cartridge 400 g (12 511)
Discharge pressure up to (bar): 400
Burst pressure system (bar): 850
Burst pressure grease gun head (bar): 1200
Operation of push rod: with L-design handle
Cover: loose
Wall thickness of grease gun tube (mm): 1.0
Lacquering: silver
Dimensions LxWxH (mm): 395 x 120 x 66
Weight (kg): 1.25

Specification
● Spout, angled, G 1/8”, 150 mm (12 735)
● Coupler, 4 jaws, G 1/8” (12 731)

Special notes
● Operates with greases up to NLGI grade 2 at 20°C
● Plunger with exactly fitting when using bulk grease or cartridge
● acc. to DIN 1283
● TÜV – certified
● Pump piston with high accuracy of fit to the cylinder (no dummy apparent lubrication)
● Performance unchanged after 40.000 actuating cycles
● Grease gun head, zinc die casting Z 410
● Sure grip handling due to deep band knurls
● Safe handle on the push rod
● Slip resistant handle on grease gun lever
● Plunger rod clamp on end cap enables manual pressure to be applied to spring to
compress bulk grease, or to force in the plunger in damaged cartridges.
● Low effort required for lubrication due to optimum lever efficiency
● High-speed ventilation, by half a rotation of the grease gun tube

Packaging
Package: Polybag, printed, with EAN bar code
Dimensions LxWxH (mm): 400 x 360 x 145
Weight including package (kg): 13.2
Packing unit: 10.0
